System tools

Manage sysmodules, set the fan curve, manage saved Wi-Fi networks and user profiles.

Where: Tools → Tools

Tools submenu: one list under three captions — Diagnostics, Settings, Maintenance

Group Item What it is
Diagnostics System information Console, Atmosphère, storage, power, battery, hardware and play activity. See System information.
Settings Module Manager Start, stop and set autostart for installed sysmodules.
Settings Fan curve Fan speed curves for handheld and docked mode.
Settings Wi-Fi Saved Wi-Fi networks.
Settings Users Console user profiles. See Users.
Maintenance Clean system junk Deletes leftovers. See Clean system junk.
Maintenance Fill free SD space with zeros Overwrites the unused space of the memory card. See Fill free SD space with zeros.
Maintenance Remove parental controls Planned; opens a "Coming soon" message.

System information

Where: Tools → Tools → System information

System information: Console group open, parameter → value rows, other groups closed

Each group shows rows of parameters and values. The list includes Console, Atmosphere, Storage, Power, Battery, Hardware, and Play activity. The first group opens automatically at start, and a group whose service cannot be read is hidden. Press A on a group or tap it to open or close it, or press A on any row to open or close its parent group. Press Y to open or close all groups at once. Press left or right to page through the rows, or press L (Previous group) and R (Next group) to jump directly to the previous or next group and open it. The number on the right of a closed group indicates its row count.

  • Console: firmware version, name and hash; model; hardware type and SoC; retail or development unit; burnt fuses; DRAM id; device id; kiosk; charger HiZ; serial number; console nickname; language; region; parental controls. The Serial number is the real one, while Serial number source indicates where it was read from, such as System settings, PRODINFO partition, or a Backup file with its path (Atmosphère /atmosphere/automatic_backups, hekate /backup). If the system returns a blank serial due to features like Atmosphère blank_prodinfo or Incognito, Serial number (system) shows that blank value. If no source contains it, the value is Not available.
  • Atmosphere: version, key generation, target firmware, supported firmware, git commit, RCM bug patched, emuMMC type (partition or file), blank PRODINFO, PRODINFO writes allowed, and USB 3.0 forced.
  • Storage: system memory used and free; microSD used and free, speed mode, user and protected area; and microSD CID details including maker, OEM id, product, revision, serial, and month made.
  • Power: charger status, charging allowed, power sufficiency, current charging state, fast charging, USB charger type, USB power role, current and voltage limits, HiZ state, controller power supply, OTG, and power delivery state on firmware 17.0.0 or newer.
  • Battery: charge level, raw charge, health, temperature, voltage, design capacity, full capacity now, remaining capacity, charge cycles, age, current, average current, cell voltage, cell temperature, and time to empty.
  • Hardware: Bluetooth and Wi-Fi MAC addresses, configuration ID, battery lot, and the serial number from the calibration data.
  • Play activity: installed games, total play time, total launches, and most played game.

Module Manager

Shows every sysmodule installed in /atmosphere/contents on the memory card, whether it runs now, and whether it starts at boot.

Where: Tools → Tools → Module Manager

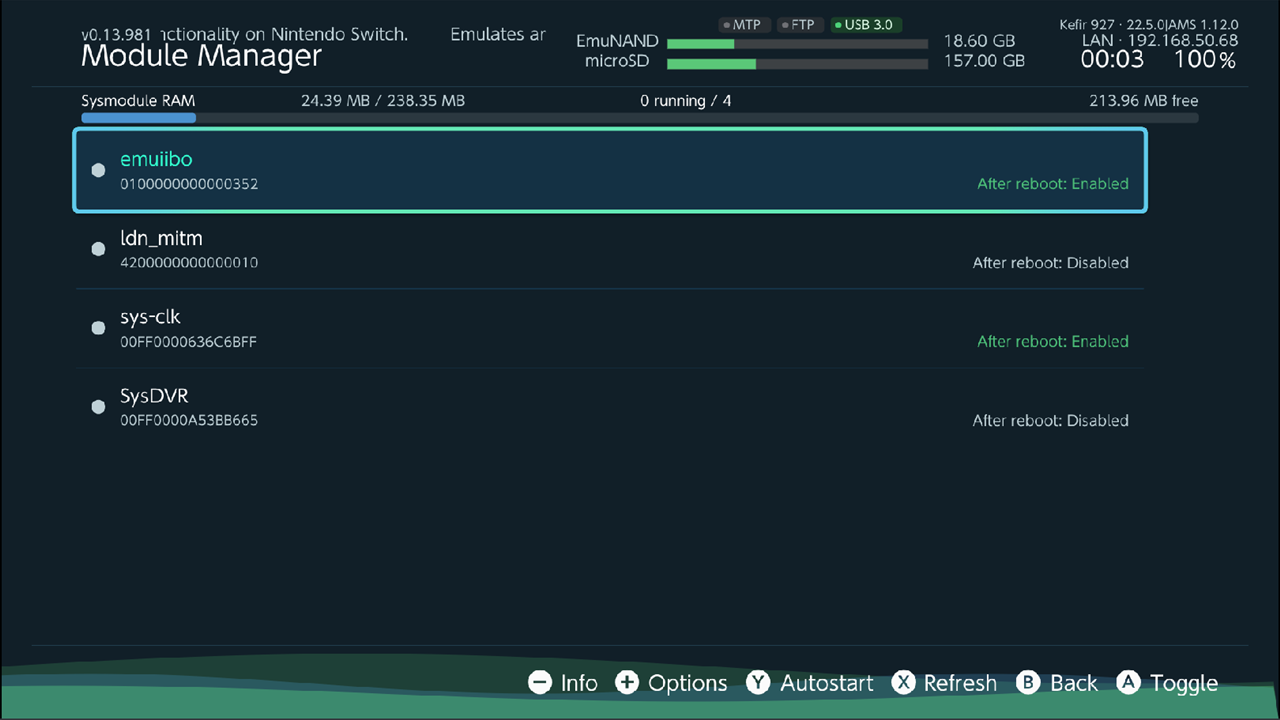

Module Manager list: green/grey dots, RAM per running module, "After reboot: Enabled/Disabled", Sysmodule RAM bar at the top

Each row shows:

  • a green dot when the module runs now, grey when it does not;
  • its name and program ID; "Applies after reboot" when the module can only start at boot;
  • the RAM it uses, when it runs;
  • "After reboot: Enabled" or "After reboot: Disabled" — whether it starts when the console boots.

The bar at the top (Sysmodule RAM) shows how much of the system memory pool is used and how much is free.

Start or stop a module

  1. Select the module.
  2. Press A (Toggle). A running module stops; a stopped module starts.

Some modules cannot be toggled here:

  • A module marked Applies after reboot cannot start while the console runs. Use autostart and reboot.
  • sys-patch starts at boot and does not need to be started again.
  • FunControl (the fan module) is started by Kefir Hub when you use Fan curve and stopped automatically.

Start a module at boot

  1. Select the module.
  2. Press Y (Autostart). The right column changes to "After reboot: Enabled" or "After reboot: Disabled".
  3. The change takes effect on the next boot.

Module details

Press − (Info) to see the name, program ID, current state, RAM use, autostart state and a description (taken from the module's GitHub page when available).

Options

Press + (Options).

Option What it does
Start / Stop Same as A for the selected module.
Autostart Same as Y.
Info Same as −.
Filter Show All, Running, Stopped, Autostart or Applies after reboot modules.
Sort Order by Name, Running or Autostart.

Press X (Refresh) to read the states again.

Warning

Stopping a module the system or a running game depends on can make it crash. If something stops working, reboot.

Fan curve

Sets how fast the fan spins at each temperature, separately for handheld and docked mode. The curve is written to Atmosphère's system_settings.ini.

Where: Tools → Tools → Fan curve

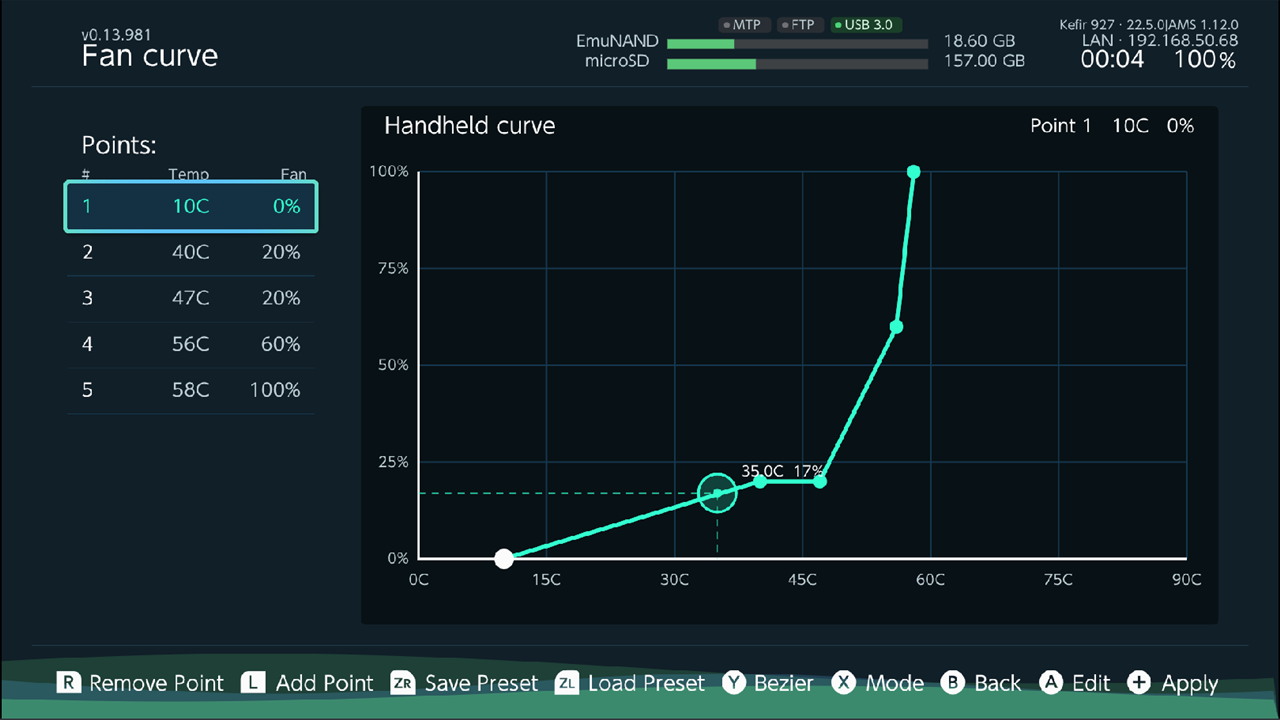

Fan curve screen: graph with points, live temperature, points list, Handheld curve label

The first time, Kefir Hub offers to install the Kefir fan module. With it, a new curve applies without a reboot and the screen shows live sensor readings. Choose Install (recommended) or No. If the module needs a reboot to start, Kefir Hub asks Later or Reboot.

Edit the curve

  1. Press X (Mode) to switch between the handheld and the docked curve.
  2. Select a point with D-pad up/down, or tap it on the graph.
  3. Press A (Edit). Use D-pad left/right to change the temperature and up/down to change the fan speed. Press A or B (Done) to stop editing.
  4. L (Add Point) adds a point; R (Remove Point) removes the selected point. A curve needs at least two points.
  5. Press + (Apply) to save both curves and apply them.

Points stay in order: a point cannot move past its neighbours.

Y switches to Bezier mode: you move three control points (Min, Mid, Max) and the curve follows them smoothly. Press Y (Manual Mode) to return to editing single points.

If you press B with changes not applied, Kefir Hub asks to Discard them.

Presets

  • ZL (Load Preset) loads a preset into the current mode: Cold console, Quiet, Balanced, Fan off, Fan 100%, or one of three custom presets.
  • ZR (Save Preset) saves the current curve to one of three custom slots. Enter a name.

Custom presets are stored separately for handheld and docked mode.

Warning

Fan off keeps the fan at 0% at every temperature on the curve (10–90 °C), and Fan 100% keeps it at full speed. Watch the temperature if you use Fan off while playing.

Wi-Fi

Lists the Wi-Fi networks saved on the console. Connect to one, edit or delete it. New networks are added in the console's System Settings.

Where: Tools → Tools → Wi-Fi

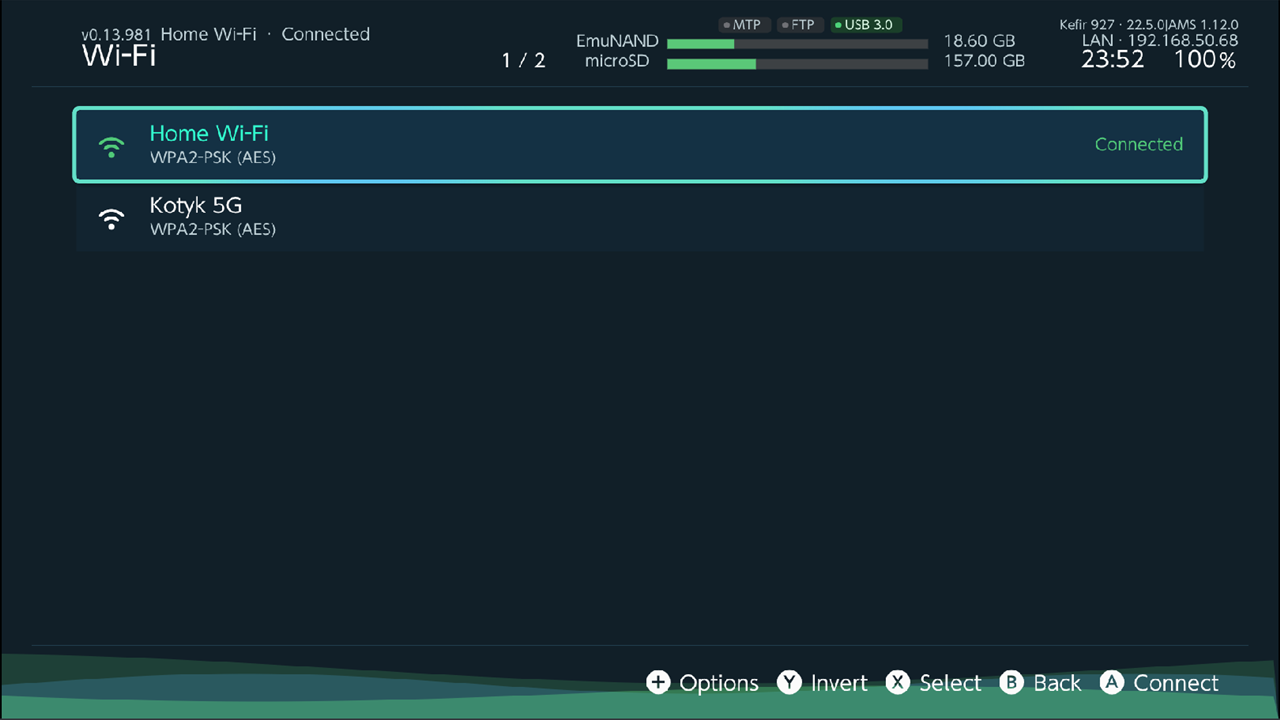

Wi-Fi list with two saved networks, one tagged Connected

Connect to a saved network

  1. Select the network.
  2. Press A (Connect) and confirm.
  3. The title shows the result, or "Connection timed out".

Edit or delete a network

Press + (Options) on a network:

Option What it does
Connect Connect to this network.
Rename Change the name shown for this network.
Change password Set a new Wi-Fi password without opening System Settings.
Edit SSID Change the network name (SSID) the console looks for.
View password & details Show the SSID, security type and saved password.
Delete network Remove the saved network.
Turn Wi-Fi Off / Turn Wi-Fi On Switch wireless communication off or on.
Refresh Reload the saved networks.

Warning

View password & details shows the password in plain text on screen.

Delete several networks

  1. Press X (Select) on each network, or Y (Invert) to invert the selection.
  2. Press + → Delete selected and confirm.

Press B to clear the selection.

Users

Create, rename, back up and link console user profiles. See Users.

Clean system junk

Deletes what installs and removed games leave behind.

Where: Tools → Tools → Clean system junk

Turn off what you want to keep, then choose Run selected. The message at the end tells how much space came free.

Item What it deletes
Old game updates An update when a newer one of the same game is installed.
Lost content on the SD card, Lost content in system memory Game files no installed game uses.
Unfinished installs on the SD card, Unfinished installs in system memory Pieces of installs that stopped half way.
Unused tickets Tickets of games that are no longer installed.
Error reports Crash reports in /atmosphere/erpt_reports.
Folders of removed games Folders in /atmosphere/contents of games that are no longer on the console. Sysmodules are kept.
Saves of removed users Saves of users that were deleted from the console. Off by default: these cannot be restored.

Fill free SD space with zeros

Overwrites the space no file uses on the memory card with zeros. Files, games and saves stay as they are. Use it before you sell or hand over a card, so deleted data cannot be recovered.

Where: Tools → Tools → Fill free SD space with zeros

  1. Select the item and confirm with Fill.
  2. Wait. The bar shows how much is written; it can take a long time on a large card.
  3. B cancels; the space written so far is freed again.

Kefir Hub keeps 64 MB free while it writes, so the system can still save its own data.

Problems

"Could not start this module." Some modules load only at boot. Set Autostart and reboot.

"Failed to activate fan module." The curve is saved but not active. Hold A to reboot and apply it, or apply it after the next reboot.

"No saved Wi-Fi networks". Add a network in the console's System Settings first.
